| Parameter | Value |
|---|---|
| Series | TNC |
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC to 11GHz |
| Temperature Range | -65 to +165°C |
| Voltage Rating | 500V |
| Insulation Resistance | ≥5000 MΩ |
| Dielectric Withstanding Voltage | 1500V |
| VSWR | ≤1.30 |
| Contact Resistance (Center) | ≤0.002 Ω |
| Contact Resistance (Outer) | ≤0.0002 Ω |
| Durability | 500 Cycles |
| Cable Group | B2 – TFlex405, RG-405/U, SM86, SFT-50-2-1 |
Series TNC RF Coaxial connectors are one kind of middle-power connectors which developed according to MIL-C-39012, With screw-coupling mechanism, which have the advantages of vibration-proof, high reliability, superior mechanical and electrical performances, etc. They are widely used to connect the RF Coaxial cables in radio equipment and instruments. They can be interchangeable with the same-type of abroad, they accord with the Q/MB415-92 factory specifications.

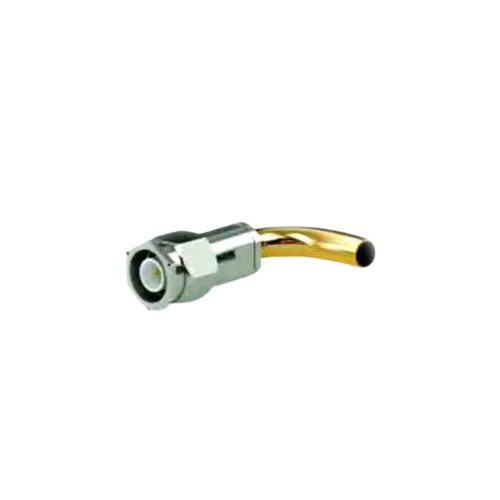

| Parameter | Value |
|---|---|
| Series | TNC |
| Gender | Male |
| Impedance | 50 |
| Mounting | |
| Body plating | Nickel |
| Contact plating | Gold |
| Attachment | Solder |
| Captivation | No |

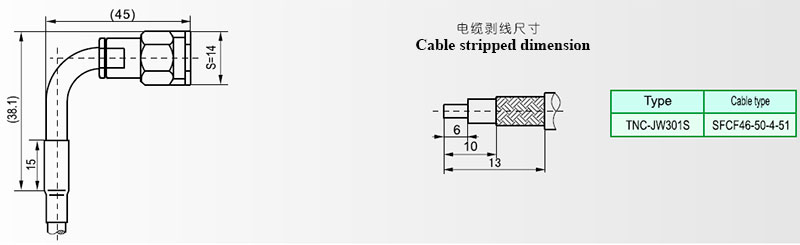

| Cable group | 301S |
Series TNC RF Coaxial connectors are one kind of middle-power connectors which developed according to MIL-C-39012, With screw-coupling mechanism, which have the advantages of vibration-proof, high reliability, superior mechanical and electrical performances, etc. They are widely used to connect the RF Coaxial cables in radio equipment and instruments. They can be interchangeable with the same-type of abroad, they accord with the Q/MB415-92 factory specifications.
| Parameter | Value |
|---|---|
| Series | TNC |
| Gender | Male |
| Impedance | 50 |
| Mounting | |
| Body plating | Nickel |
| Contact plating | Gold |
| Attachment | Solder |
| Captivation | No |
| Cable group | 301S |
