| Parameter | Value |
|---|---|
| Temperature range | -55 +155°C |
| Characteristic Impedance | 50Ω |
| VSWR – Straight (0~1GHz) | ≤1.22 |
| VSWR – Straight (0~3GHz) | ≤1.35 |
| VSWR – Right angle (0~1GHz) | ≤1.63 |
| VSWR – Right angle (0~3GHz) | ≤1.50 |
| Insulation resistance | >1000MΩ |
| Dielectric Withstanding voltage | 500V |
| Contact resistance (Center conductor) | <0.005Ω |
| Contact resistance (Outer conductor) | <0.0025Ω |
| Frequency range | 0-3GHz |
| Durability | 500 Cycles |

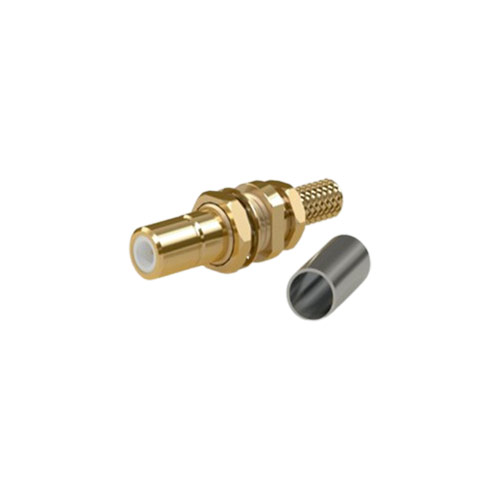

Series SSMB mini type RF-Coaxial connectors are developed according to the specification IEC 169-19, with push-on coupling mechanism, which have the of light, small, easy mating and dismounting, vibration-proof etc. They can be interchangeable with the same-type connectors of abroad. They are suitable for connecting RF coaxial cables in micro-radio equipment and instruments.
| Parameter | Value |
|---|---|
| Series | SSMB |
| Gender | Male |
| Impedance | 50 |
| Mounting | Bulkhead |
| Body plating | Gold |
| Contact plating | Gold |
| Attachment | Crimp |
| Captivation | No |
| Cable group | 3 – RG-174/U, RG-316/U, RG-188/U, RG179B/U, LMR-100A |
Series SSMB mini type RF-Coaxial connectors are developed according to the specification IEC 169-19, with push-on coupling mechanism, which have the of light, small, easy mating and dismounting, vibration-proof etc. They can be interchangeable with the same-type connectors of abroad. They are suitable for connecting RF coaxial cables in micro-radio equipment and instruments.
| Parameter | Value |
|---|---|
| Series | SSMB |
| Gender | Male |
| Impedance | 50 |
| Mounting | Bulkhead |
| Body plating | Gold |
| Contact plating | Gold |
| Attachment | Crimp |
| Captivation | No |
| Cable group | 3 – RG-174/U, RG-316/U, RG-188/U, RG179B/U, LMR-100A |
