| Parameter | Value |
|---|---|
| Temperature range | -65~+165°C |
| Insulation resistance | ≥1000MΩ |
| Characteristic Impedance | 50 Ω |
| Dielectric Withstanding voltage | 750V (rms) |
| Frequency range | 0~4GHz |
| Voltage rating | 250V (rms) |
| Contact resistance (Center conductor) | ≤0.006 Ω |
| Contact resistance (Outer conductor) | <0.0010 Ω |
| Durability | 500 Cycles |
| VSWR | ≤1.34 |

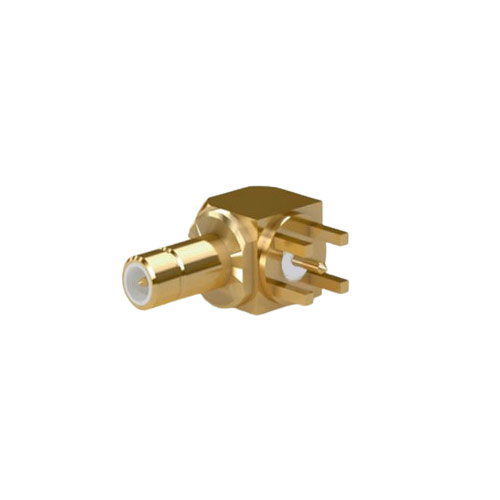

Series SMB RF Coaxial connectors developed according to the specification MIL-C-39012, with shape-on coupling mechanism, have the advantages of light, small, easy mating and super electrical performance, etc. The product are suitable to connect the RF coaxial cable of high frequency circuit in radio equipment and electrical instrument.
| Parameter | Value |
|---|---|
| Series | SMB |
| Gender | Male |
| Impedance | 75 |
| Mounting | Bulkhead |
| Body plating | Gold |
| Contact plating | Gold |
| Captivation | No |
| Terminal type | PCB |
Series SMB RF Coaxial connectors developed according to the specification MIL-C-39012, with shape-on coupling mechanism, have the advantages of light, small, easy mating and super electrical performance, etc. The product are suitable to connect the RF coaxial cable of high frequency circuit in radio equipment and electrical instrument.
| Parameter | Value |
|---|---|
| Series | SMB |
| Gender | Male |
| Impedance | 75 |
| Mounting | Bulkhead |
| Body plating | Gold |
| Contact plating | Gold |
| Captivation | No |
| Terminal type | PCB |
