| Parameter | Value |
|---|---|
| Temperature range | -65 to +165°C |
| Characteristic Impedance | 50 Ω |
| Frequency range (with flexible cable) | 0-12.4 GHz |
| Frequency range (with semi-rigid/flexible cable) | 0-18 GHz |
| Voltage Standing Wave Ratio (VSWR, with flexible cable) | ≤1.15 + 0.02F |
| Voltage Standing Wave Ratio (VSWR, with semi-rigid/flexible cable) | ≤1.10 + 0.02F |
| Insulation resistance | >5000 MΩ |
| Dielectric Withstanding voltage | 1000 V |
| Contact resistance (center conductor) | <0.003 Ω |
| Contact resistance (outer conductor) | <0.002 Ω |
| Durability (Life cycles) | 500 Cycles |
Series SMA connectors are most commonly used, It have the advan-tages of miniature size, wide frequency range, excellent electrical performances and high reliability. The products have been widely used in the field of micro-wave communication, speceflight and navigation, weapon system and micro-wave measuring equipment.
| Parameter | Specification |
|---|---|

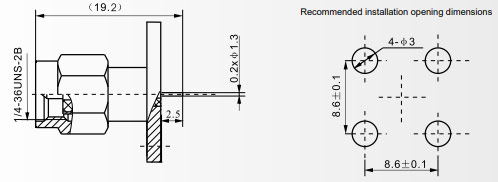

| Model Number | SMA-JFD56 |
| Series | SMA |
| Gender | Male |
| Impedance | 50Ω |
| Mounting Type | Flange |
| Body Plating | Gold |
| Contact Plating | Gold |
| Terminal Type | PCB Mount |
| Frequency Range | DC-18GHz |
| VSWR | ≤1.30 |
| Body Material | Brass |
| Insertion Loss | ≤0.1dB @ 6GHz |
Series SMA connectors are most commonly used, It have the advan-tages of miniature size, wide frequency range, excellent electrical performances and high reliability. The products have been widely used in the field of micro-wave communication, speceflight and navigation, weapon system and micro-wave measuring equipment.
| Parameter | Specification |
|---|---|
| Model Number | SMA-JFD56 |
| Series | SMA |
| Gender | Male |
| Impedance | 50Ω |
| Mounting Type | Flange |
| Body Plating | Gold |
| Contact Plating | Gold |
| Terminal Type | PCB Mount |
| Frequency Range | DC-18GHz |
| VSWR | ≤1.30 |
| Body Material | Brass |
| Insertion Loss | ≤0.1dB @ 6GHz |
