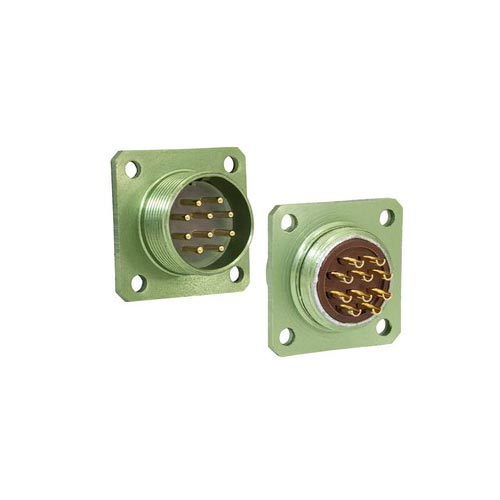

PC series small circular electrical connectors are small in size, with metal aluminum shell, light in weight, threaded connection, reliable electrical connection and easy to use. Currently there are 4, 7, 10, 19, 32, 50 cores, which can interchanged with Russian PC-4, 7, 10, 19, 32, 50 core products. Widely used in electrical circuit connection on radio and electrical equipment and instruments. There are two installation methods: flange type and cable type.
<极>Functional purpose</极><极>Nominal voltage, V200</极>
| Parameter | Value |
|---|---|
| Contact resistance, mΩ | 5 |
| Temperature range | -40~+105 °C |
| Mounting | flange |
| Functional purpose | Fork |
| Current, A | 3 |
| Installation method | On block |
| Number of contacts | 10 |
PC series small circular electrical connectors are small in size, with metal aluminum shell, light in weight, threaded connection, reliable electrical connection and easy to use. Currently there are 4, 7, 10, 19, 32, 50 cores, which can interchanged with Russian PC-4, 7, 10, 19, 32, 50 core products. Widely used in electrical circuit connection on radio and electrical equipment and instruments. There are two installation methods: flange type and cable type.
<极>Functional purpose</极><极>Nominal voltage, V200</极>
| Parameter | Value |
|---|---|
| Contact resistance, mΩ | 5 |
| Temperature range | -40~+105 °C |
| Mounting | flange |
| Functional purpose | Fork |
| Current, A | 3 |
| Installation method | On block |
| Number of contacts | 10 |
