| Connector Symbol Decoding: 2RMDT30KPE24G5V1V | ||
|---|---|---|
| Segment | Code | Meaning |
| 1-3 | 2RM | Connector type (2RM series) |
| 4 | D | Feature: D = For long lines |
| 5 | T | Feature: T = Tropical climate modification |
| 6-7 | 30 | Body size (Conditional number 30) |
| 8 | K | Housing type: K = Cable |
| 9 | P | Shell type: P = Straight |
| 10 | E | End nut type: E = For shielded cable |
| 11-12 | 24 | Number of contacts: 24 |
| 13 | G | Connector part: G = Socket (female) |
| 14 | 5 | Contact layout: Type 5 |
| 15 | V | Contact coating: V = Silver |
| 16 | 1 | Heat resistance: 1 = 100°C |
| 17 | V | Climate performance: V = All-climatic |

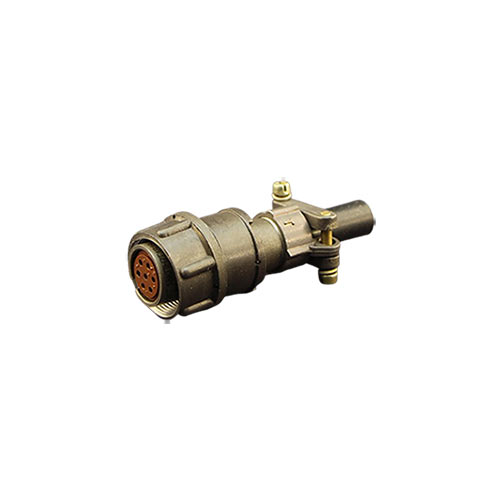

The 2RM series connectors are cylindrical low frequency small-sized connectors designed for work in electric circuits of direct and alternate current with frequency up to 3 MHz and voltage up to 700V. Connectors 2RM consist of two parts – plug and socket which can be either panel-mounted or cable-mounted. Panel-mounted parts of 2RM are manufactured without outer shell or with straight shell, cable mounted parts are manufactured without outer shell or with straight or angular outer shell. Type of joint – threaded, the polarization of the shells is single-key. The contacts are gold or silver-plated. The connectors are designed for installation with shielded or unshielded cables (wires), thus changing the type of the end nut of the shell. Connectors 2RM are designed for interior wiring.
| Parameter | Value |
|---|---|
| Conventional size of the case | 18 |
| Functional purpose | Socket |
| Installation method | on cable |
| Number of contacts | 7 |
| Contact combination | 1 |
| Contact type | nest |
| Operating temperature, °C | -60 C+100 |
| Body material | metal |
| Insulator material | carbolite |
| Contact plating | silver |
| Pipe branch | Direct |
| Weight, g | 28 |
The 2RM series connectors are cylindrical low frequency small-sized connectors designed for work in electric circuits of direct and alternate current with frequency up to 3 MHz and voltage up to 700V. Connectors 2RM consist of two parts – plug and socket which can be either panel-mounted or cable-mounted. Panel-mounted parts of 2RM are manufactured without outer shell or with straight shell, cable mounted parts are manufactured without outer shell or with straight or angular outer shell. Type of joint – threaded, the polarization of the shells is single-key. The contacts are gold or silver-plated. The connectors are designed for installation with shielded or unshielded cables (wires), thus changing the type of the end nut of the shell. Connectors 2RM are designed for interior wiring.
| Parameter | Value |
|---|---|
| Conventional size of the case | 18 |
| Functional purpose | Socket |
| Installation method | on cable |
| Number of contacts | 7 |
| Contact combination | 1 |
| Contact type | nest |
| Operating temperature, °C | -60 C+100 |
| Body material | metal |
| Insulator material | carbolite |
| Contact plating | silver |
| Pipe branch | Direct |
| Weight, g | 28 |
